dima® Print Guide & Tray
dima® Print Guide & Tray

dima® Print Guide & Tray

2-in-1: excellent results, more convenient

Did you know that it is much easier to print surgical guides & individual impression trays instead of producing them analog? The dual application of dima Print Guide & Tray saves you storage capacity and overall production time. With this new photopolymere we have brought in our longtime impression expertise, where the impression tray has been tested with various impression materials & tray adhesives. Rely on us and test it!

Benefits

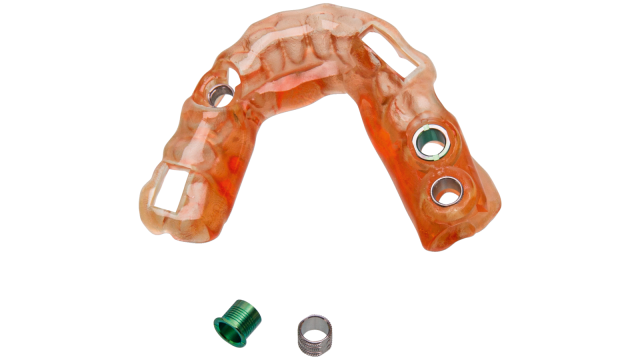

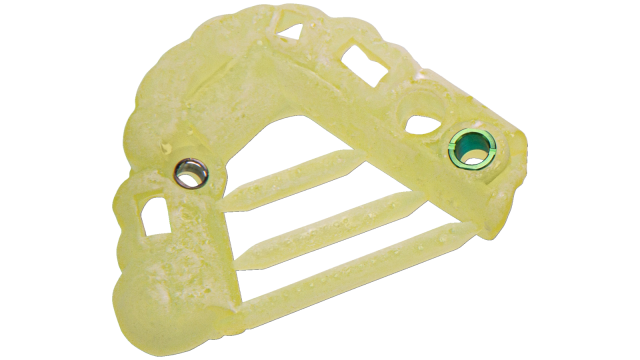

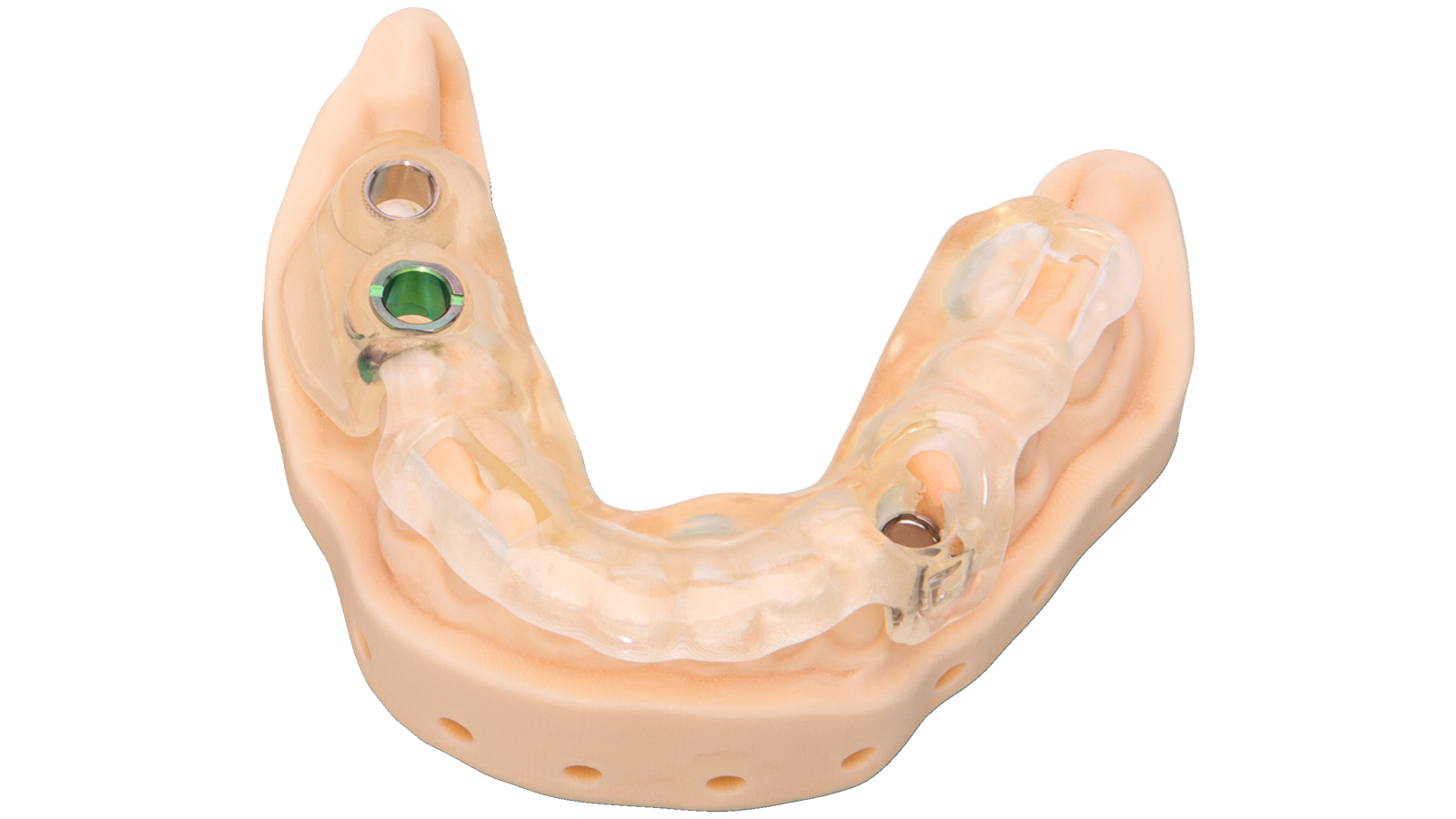

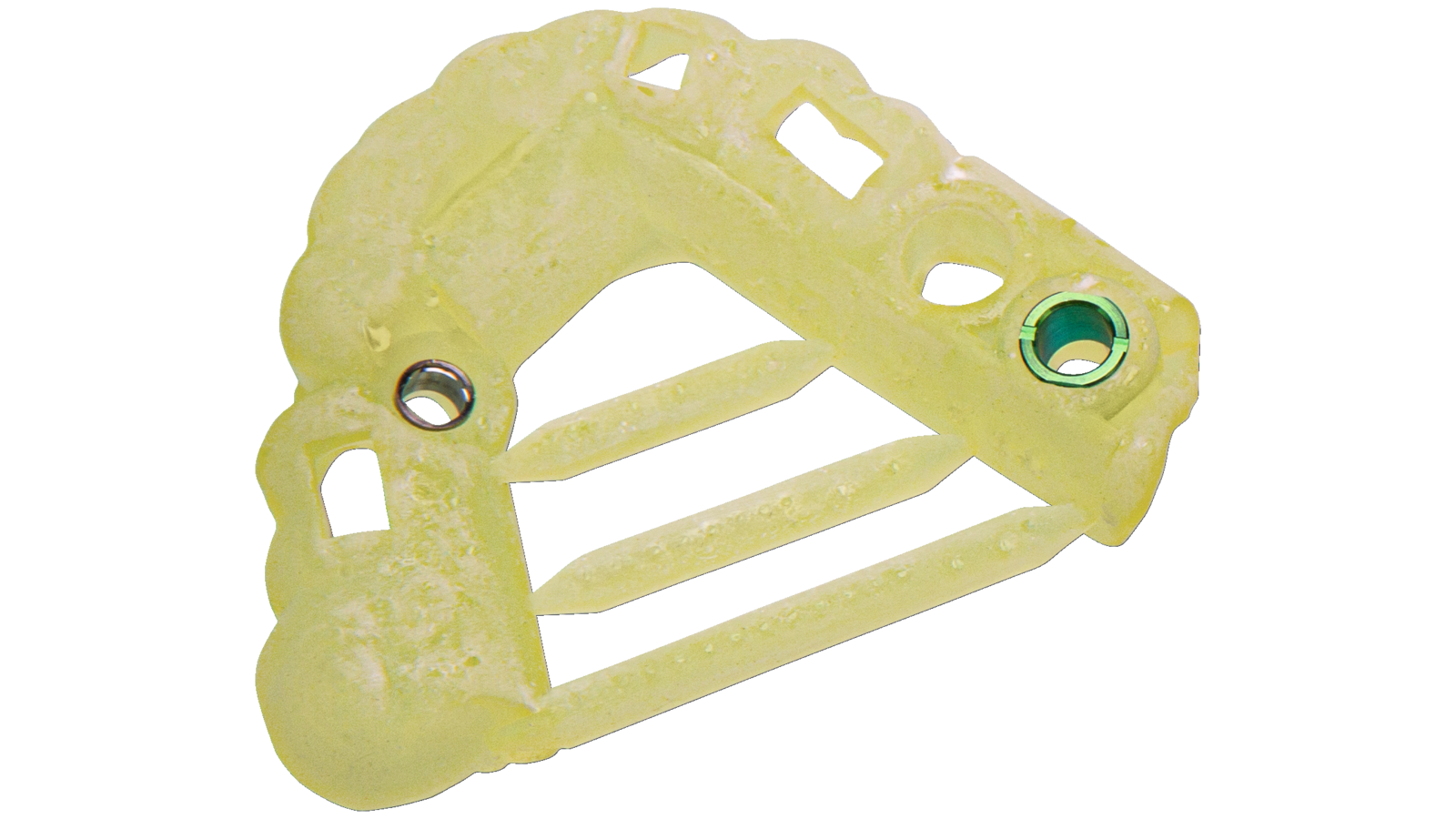

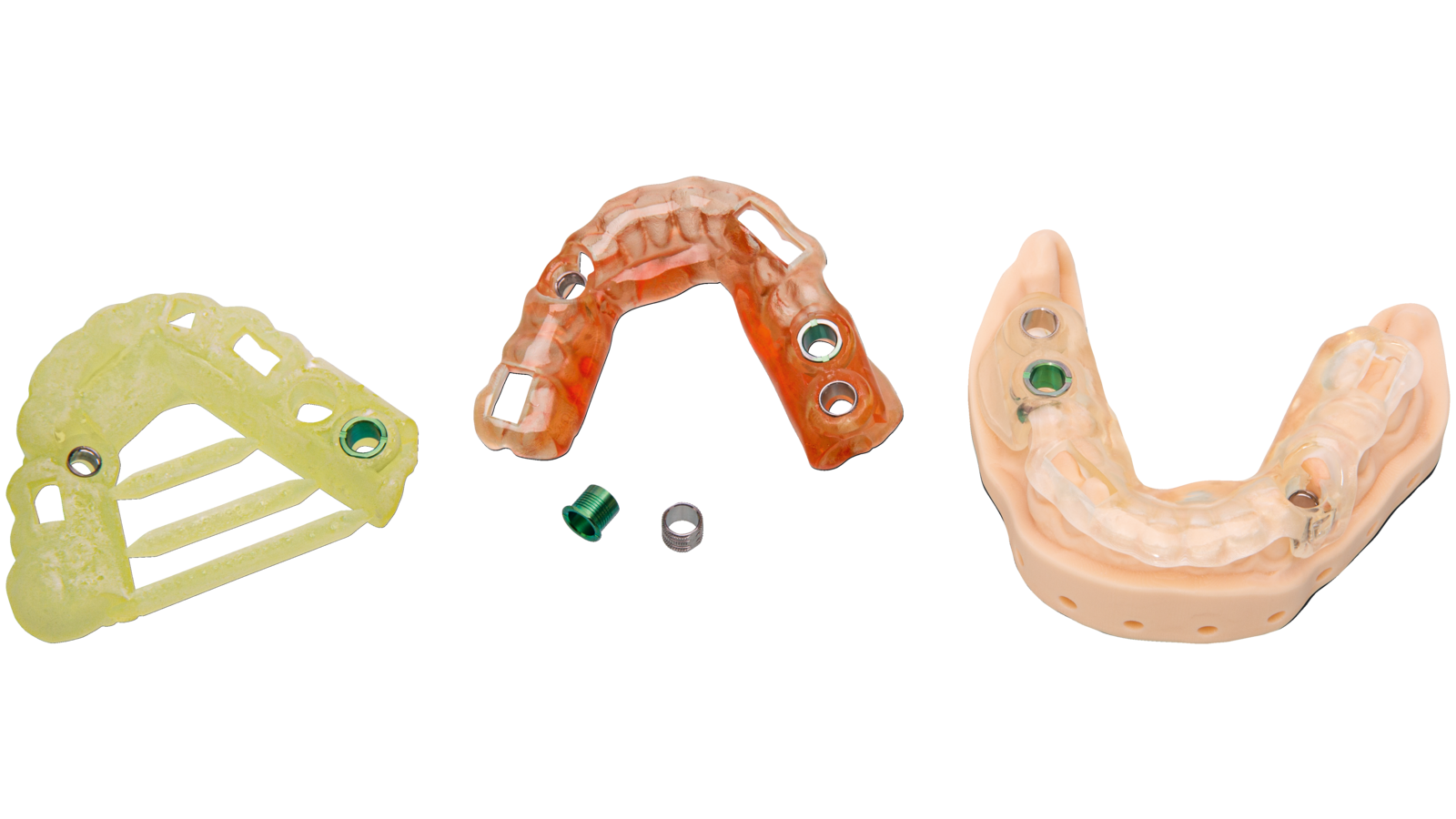

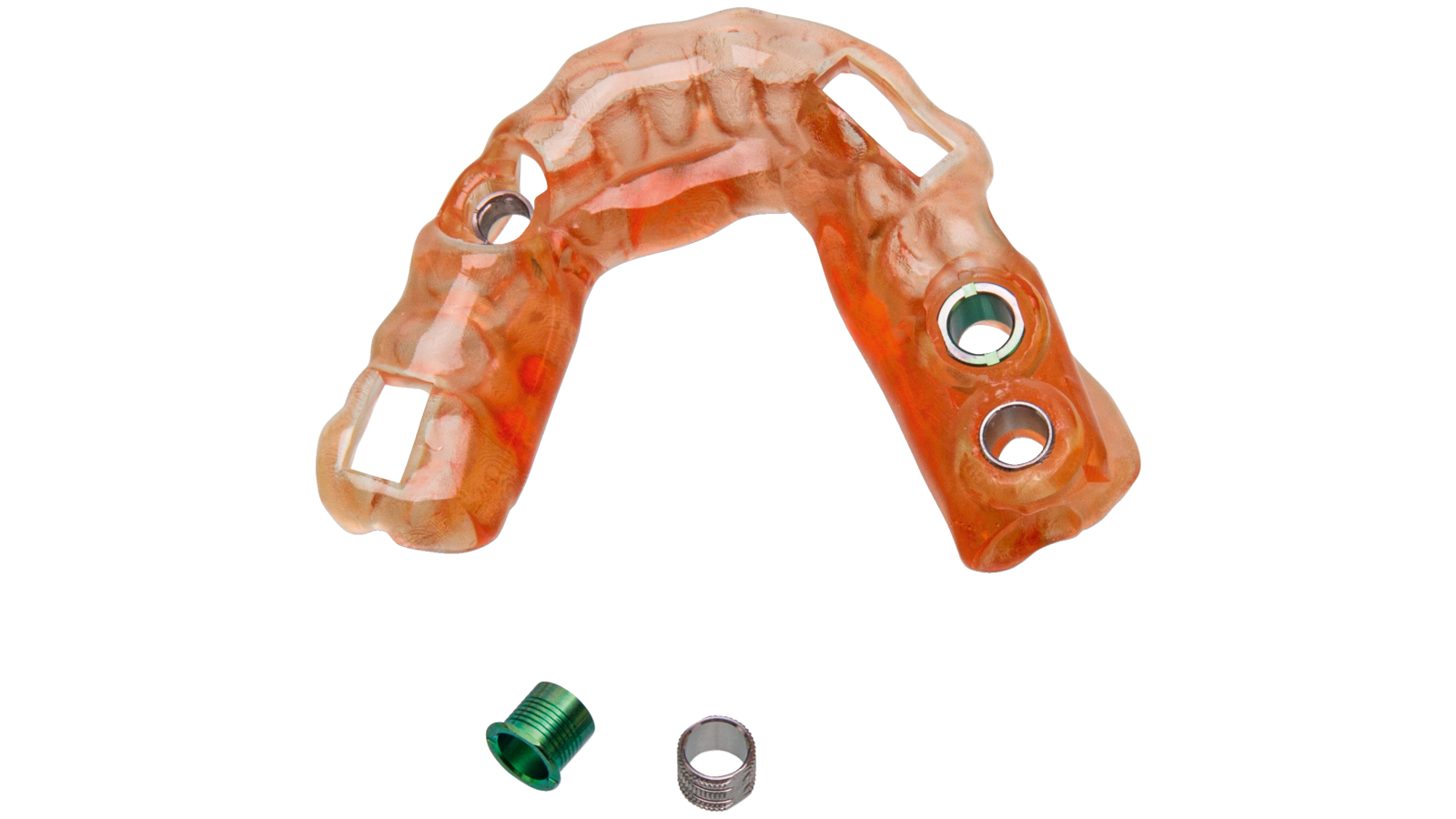

Surgical guides

  • High accuracy! Very high heat resistance during autoclaving, meaning little to no distortion.
  • Safe and convenient! Transparent guides enable visual control of surgical field – satisfied dentist.
  • Verified! Colour change after autoclaving.
  • Overall efficient and economical!
    - 30 minutes for printing surgical drilling guides – 100 µm.
    - Create approx. 130 drilling guides with just one bottle dima Print Guide & Tray.

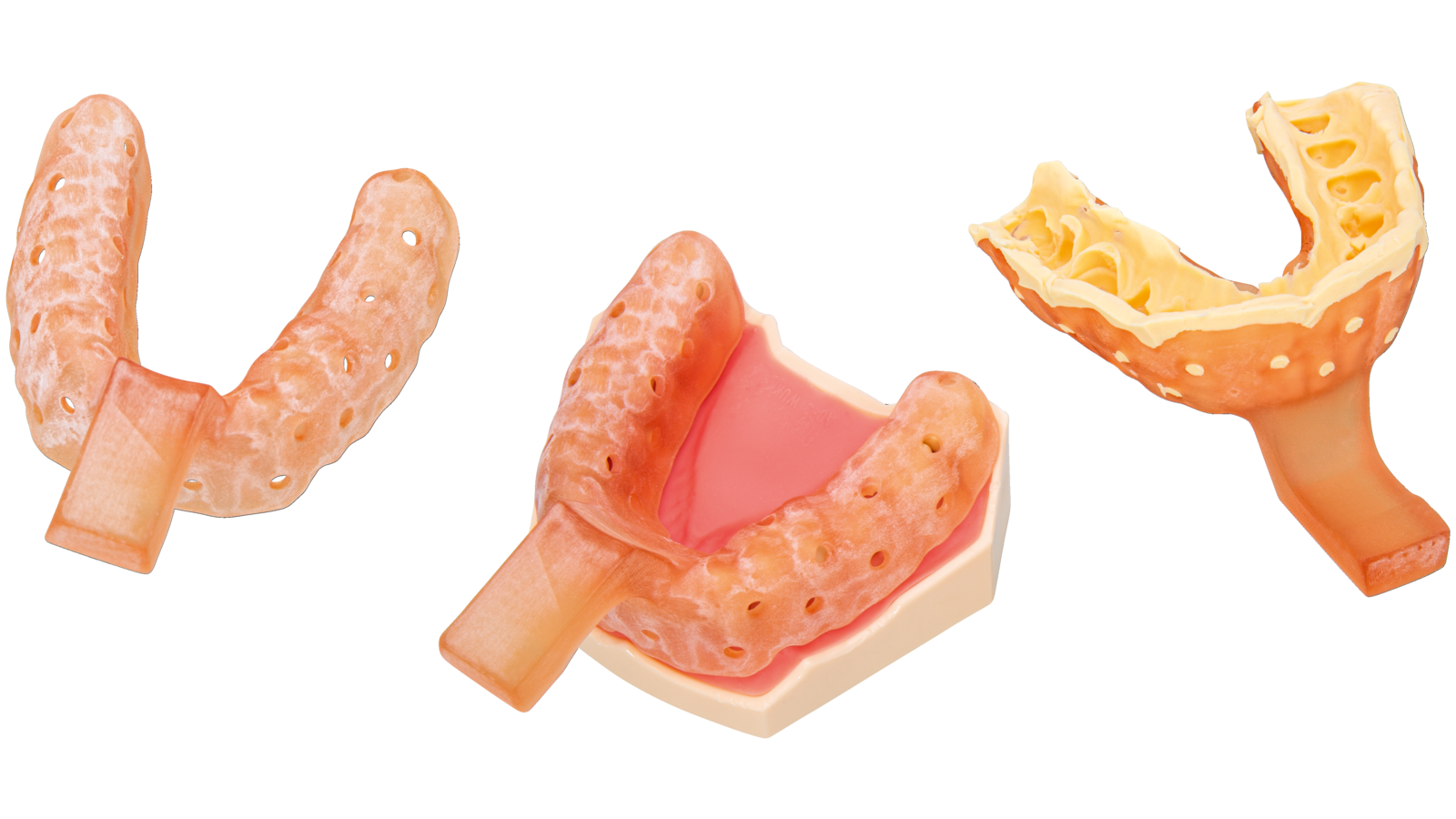

Individual impression trays

  • High precision! The transparent-orange color allows for visual control during tray fitting and impression taking.
  • Expert for impression! Kulzer has confirmed it’s compatibility with impression materials and tray adhesives.
  • Overall efficient and economical!
    - 15 minutes for printing Trays – 150 µm
    - Create approx. more than 40 impression trays with just one bottle dima Print Guide & Tray

Good to know

PRINT GUIDES & TRAYS

Image Gallery

1 / 5

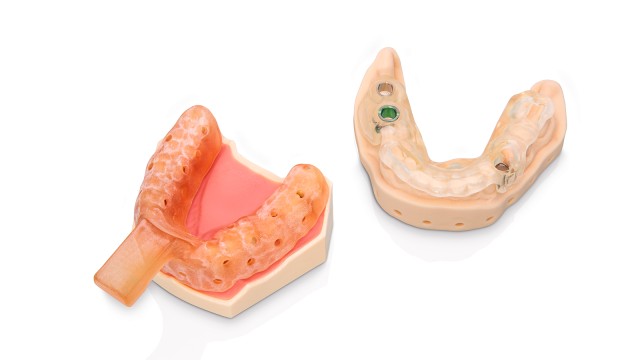

dima® print Guide & Tray

Produce more quickly and easily surgical guides with dima® Print Guide & Tray.

Specifications

Printing performance overview cara Print 4.0


Example
Build height [mm] Time [min] for 100 µm resolution Time [min] for 150 µm resolution Material consumption [g] Avg. material costs/part [€]
Medium size drilling guide 20 15 - 7,5 2,17€
Impression tray (upper jaw) 67 42 32 37,6 10.87€

Product overview

Flexural Strength (Mpa) Flexual Mdoulus (Mpa) Water sorption (µm/mm³) Water solubility (µm/mm³) Cleaning time in isopropanol cara Print Clean pro Post-curing time HiLite Power 3D Post-Curing time LEDcure (no turning of object necessary)
> 90 MPa (measured dry, adapted to ISO 20795-1:2013) > 2500 MPa (measured dry, adapted to ISO 20795-1:2013) / / Pre-cleaning: 3 min.
Post-cleaning: 2 min. 		10 min. (5 min. front side 5 min, reverse side) Select dima Print Guide & Tray

Downloads

Instructions For Use

Go to e-IFU Portal

Instructions for Use can be found on the Kulzer e-IFU portal.

Download selected (ZIP)

FIND YOUR SALES REP

Sales rep search

FIND YOUR SALES REP

Please type in the first 3 digits of your zip code to find your sales representative.

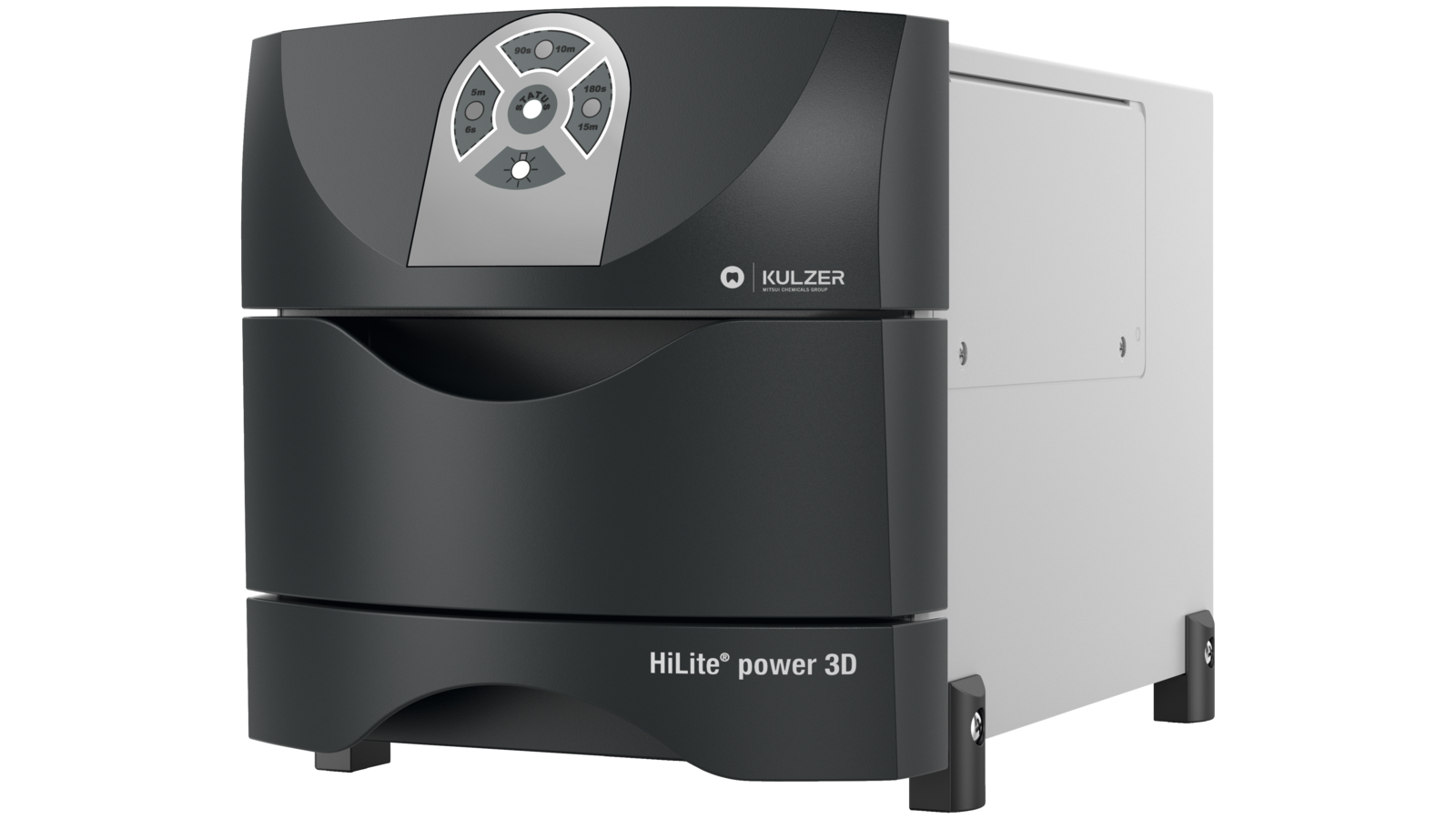

  • HiLite® power 3D
