For accuracy you can really feel, but barely see
Invisible, crystal-clear 3D-printed splints with a perfect fit

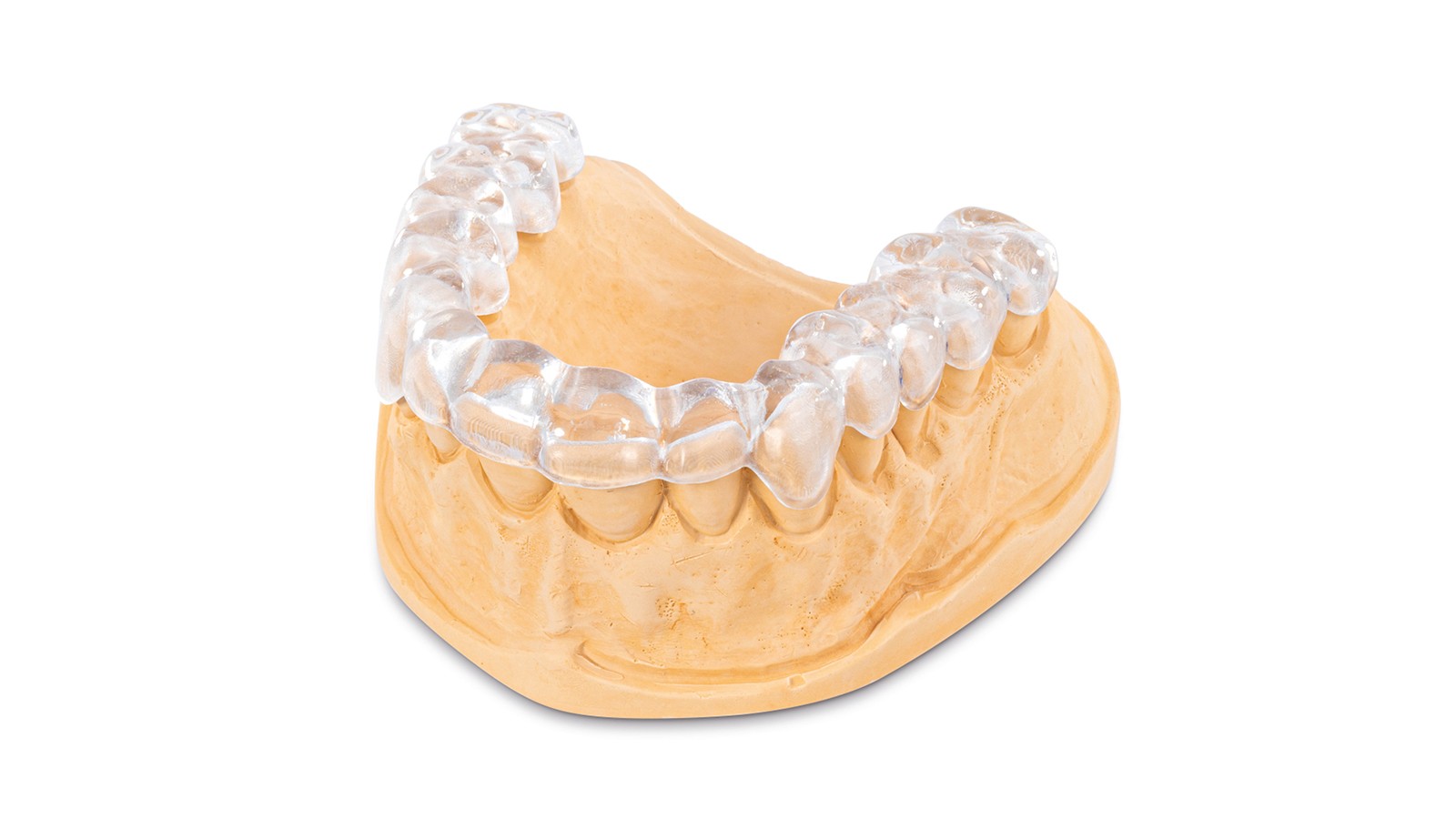

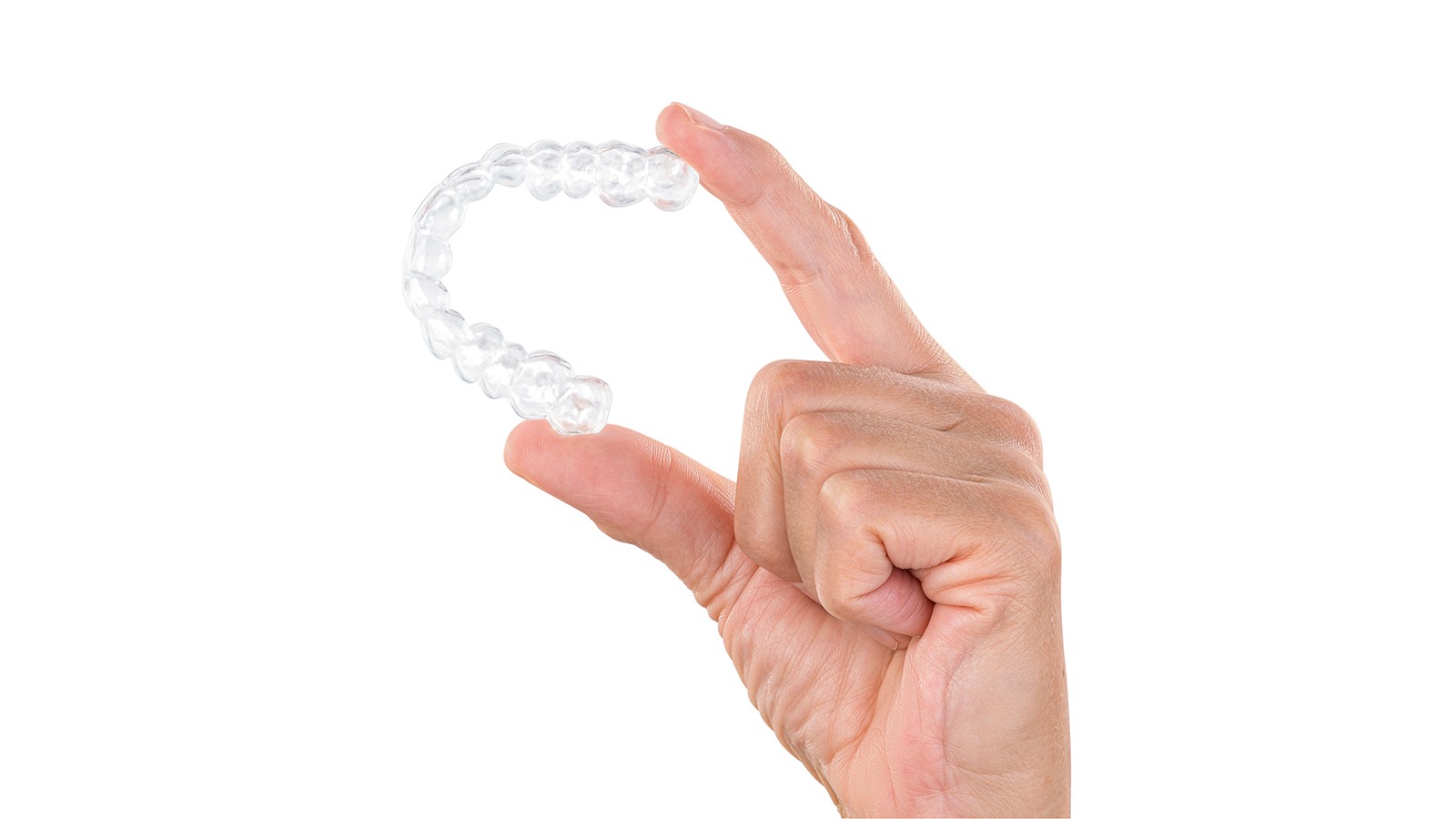

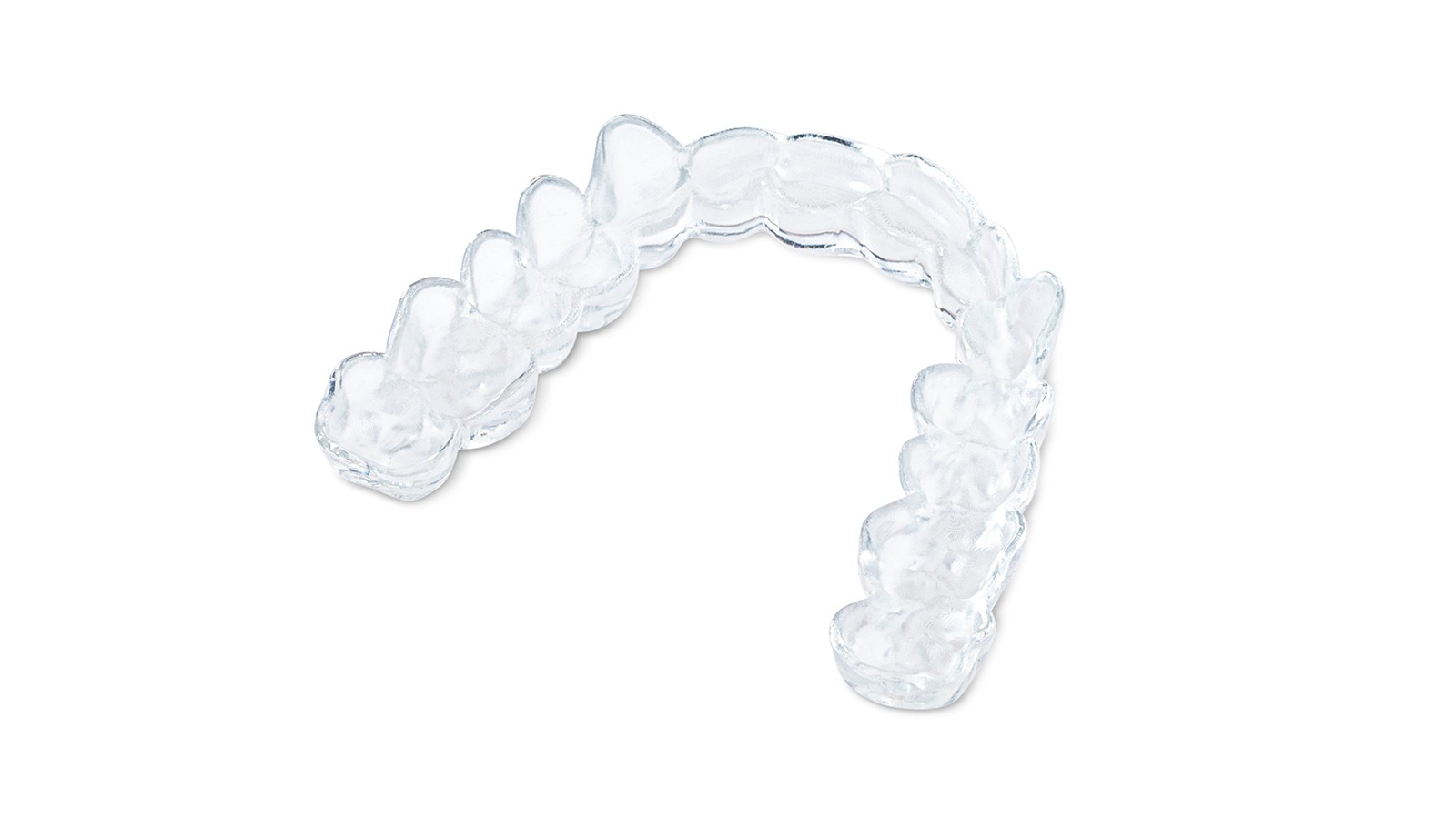

The invisible 3D-printed splint with dima Print Splint clear
“Bite splints, manufactured using Kulzer's 3D printer, convince both dentists and patients with their excellent fit and the perfect mix of material strength and elasticity, which guarantees 100% patient acceptance.”
Dr. Heinz Weber
|Printing performance overview|
|Example||Build height [mm]||Time [min] for 50 µm resolution||Time [min] for 70 µm resolution||Time [min] for 100 µm resolution||Material consumption [ml]||Avg. material costs||Avg. material costs/part|
|2 splints 0°||16.65||34||24||17||9.36||2.52||1.26|
|MDD class||Color||Flexural Strength (Mpa)||Flexual Modulus (Mpa)||Viscosity [Pa*sec]||Cleaning time in Isopropanol (cara Print Clean or ultra sonic bath)||Post-curing time (HiLite Power 3D)||Post-Curing time LEDcure (no turning of object necessary)|

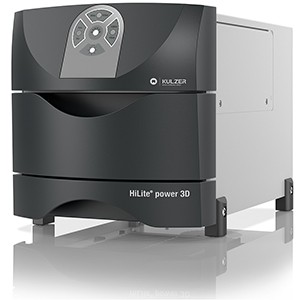

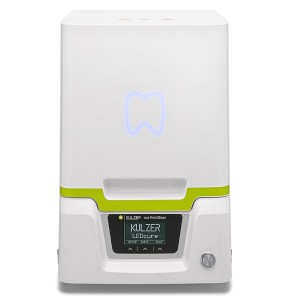

|IIa||transparent||110.9||2461||0.7||pre-cleaning: 3 minutes postcleaning: 2 minutes||6 minutes (3 minutes front side +3 minutes reverse side)||Select dima Splint clear program|
Instructions for Use can be found on the Kulzer e-IFU portal.
